ABP2LANT010BAAA5XX
Product description

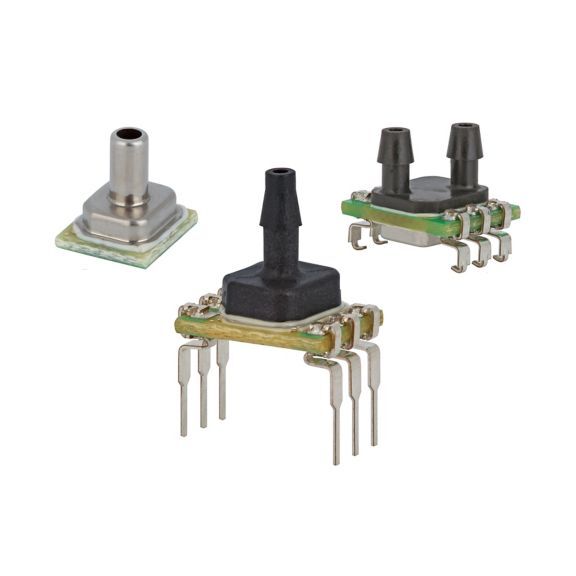

The ABP2 Series are piezoresistive silicon pressure sensors offering a digital or analog output for reading pressure over the specified full scale pressure span and temperature range.
They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC).
Calibrated output values for pressure and temperature are updated at approximately 200 Hz. All products are designed and manufactured according to ISO 9001 standards. The liquid media option includes an additional gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur.
| Series: | ABP2 |
|---|---|
| Pressure Type: | Absolute |
| Pressure Range: | 10 bar |
| Relative Accuracy: | ±0.25 % |
| Voltage: | 4.75 - 5.25V |
| Temperature: | -40 to +110°C |
| Output Type: | analog |
| Storage Temperature: | -40 to +125°C |
| Dimensions: | 8.2 x 7.2 x 10.6 mm |
| Start-up time: | 5 ms |
| Form factor: | Leadless SMT |
| Port: | Single axial barbed port |
| Packaging: | Tube |
