ABP2LANT030PGSA3XX

Honeywell*Basic ABP2, 2.07bar (30psi), Gage, SMTL, Single axial port, Digital SPI, 3.3v, Liquids/Gases
Manufacturer Item No.:
ABP2LANT030PGSA3XX
Item number:
ABP2LANT030PGSA3XX
from 55 pieces 11,96 € / 1 pieces
from 165 pieces 9,81 € / 1 pieces
11,96 € / 1 pieces
Orderable, delivery time on request
plus Shipping and VAT
not_available_orderable_empty_shipping
Add to Favorites

Product description

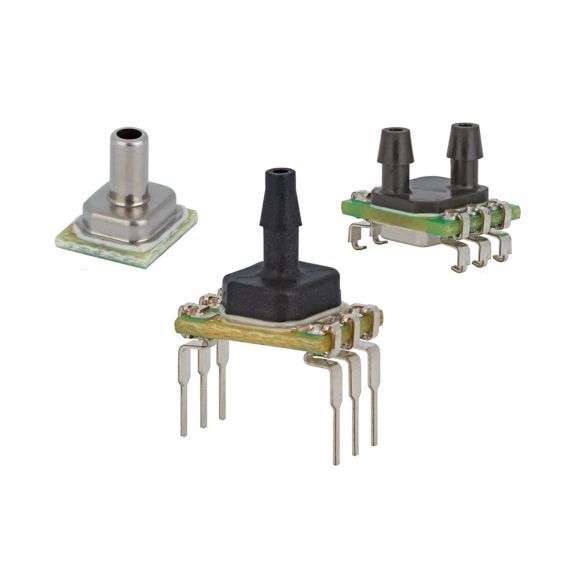

The ABP2 Series are piezoresistive silicon pressure sensors offering a digital or analog output for reading pressure over the specified full scale pressure span and temperature range.

They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC).

Calibrated output values for pressure and temperature are updated at approximately 200 Hz. All products are designed and manufactured according to ISO 9001 standards. The liquid media option includes an additional gel coating to protect the electronics under port P1, which enables use with non-corrosive liquids (e.g. water and saline) and in applications where condensation can occur.



Series:ABP2
Pressure Type: Gage
Pressure Range:30 PSI
Relative Accuracy:±0.25 %
Voltage:1.8 - 3.6V
Temperature: -40 to +110°C
Output Type:SPI
Storage Temperature: -40 to +125°C
Dimensions:8.2 x 7.2 x 10.6 mm
Start-up time:2.5 ms
Form factor:Leadless SMT
Port:Single axial barbed port
Packaging:Tube
