EVK-F10N-00
u-blox F10 GNSS Evaluation Kit f. NEO-F10N modules
Manufacturer Item No.:
EVK-F10N-00
Item number:
EVK-F10N-00
Add to Favorites
L1/L5 dual-band performance for meter-level accuracy in urban environments
- Easy-to-use kit including antenna, u-center 2 software, and cabling for evaluation of all features of the u-blox NEO-F10N dual-band GNSS module
- Rugged housing with pin-header for full access to all I/O ports of the NEO-F10N module
- On-board power consumption sensors
- Upgradeable firmware

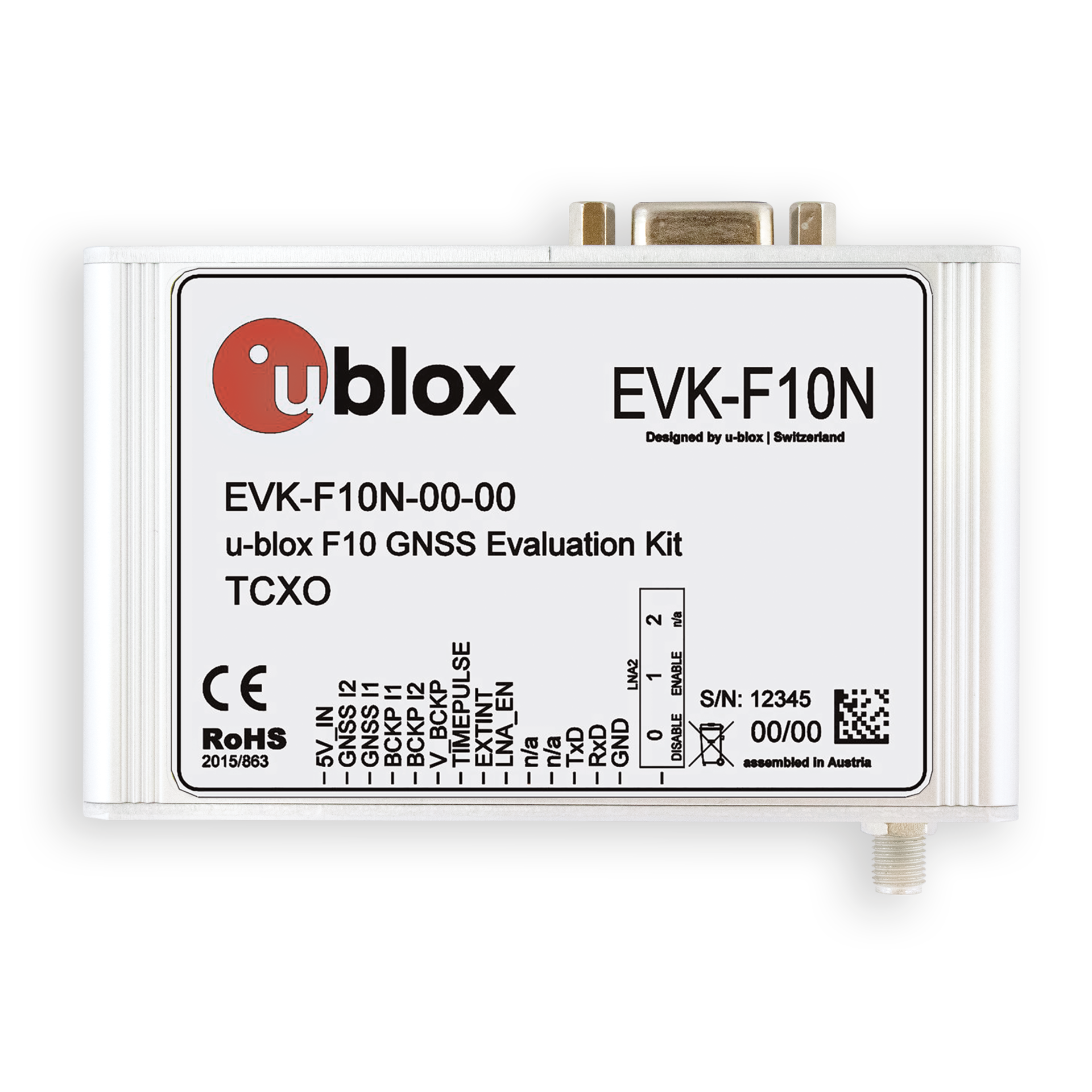

The EVK-F10N evaluation kit is perfect for evaluating the performance of u-blox F10 L1/L5 dual-band GNSS technology in an easy way. It comes in a rugged metal housing with a compact size of 105 x 64 x 26 mm.
The 14-pin front connector gives access to all module interface pins and on-board power consumption sensors. An application board can connect to the embedded u-blox NEO-F10N module easily through the UART interface.
Included in the kit is ANN-MB5, a compact L1/L5 dualband antenna that supports all major GNSS constellations, including NavIC.
EVK-F10N works with u-center 2 software for configuration, evaluation, and debugging of u-blox GNSS products and services. u-center 2 provides useful assistance during all phases of a system integration project.
The EVK-F10N is powered through the USB interface. You can connect a PC running u-center 2 to the kit via the USB or RS232 interface. The on-board power consumption sensor allows measurements over time by means of the included u-center 2 GNSS evaluation software.
- Compact 105 x 64 x 26 mm EVK-F10N unit in metal housing
- Type C USB cable
- ANN-MB5 active GNSS L1/L5 band antenna with 3 m cable
| Chip: | u-blox F10 |
|---|---|
| Form factor: | Evaluation Kit |
| Dimensions: | 105 x 64 x 26 mm |
| GNSS Oscillator: | TCXO |
| Temperature: | -40 to +85 °C |
