LEXI-R10801D-00B

World's smallest LTE Cat 1bis modules, ideal for size-constrained devices



• Reduced logistics complexity with two regional product variants
• Certified with leading mobile operators, including US LTE networks
• Very low power consumption with eDRX and PSM power modes
• Wi-Fi scan and u-blox CellLocate for indoor positioning
• Universal connectivity via 4G LTE networks

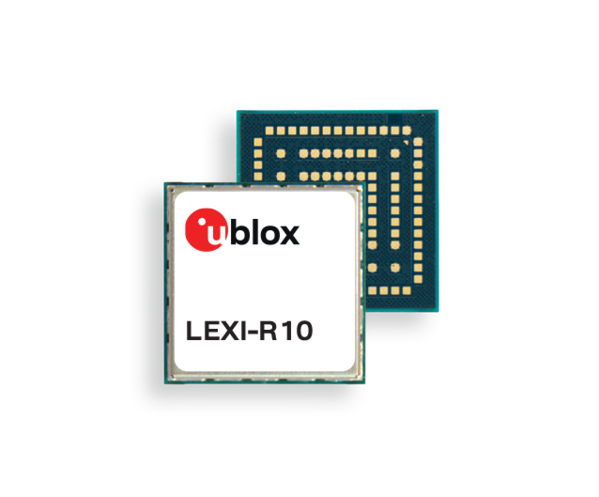

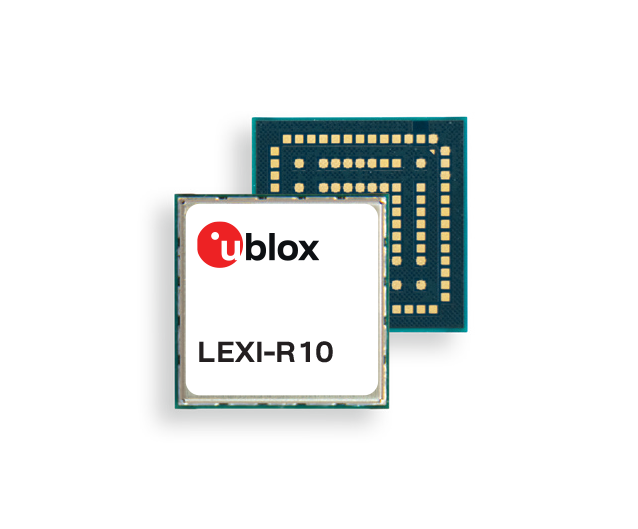

The LEXI-R10 series comprises highly integrated and compact modules featuring medium capacity data connectivity (10 Mbit/s downlink, 5 Mbit/s uplink) with very low energy consumption. With its 16 x 16 mm size, LEXI-R10 is the world’s smallest LTE Cat 1bis single-mode module, which enables high design flexibility and smallest designs. Thanks to connectivity to ubiquitous LTE Cat 1 networks, LEXI-R10 is ideally suited to a wide range of value-oriented applications that require medium data speed and superior coverage. Typical applications are asset tracking, telematics, healthcare, and wearables.

The LEXI-R10 series modules support multi-band LTE-FDD and come in two variants:

• LEXI-R10401D provides an ideal LTE Cat 1bis solution for the Americas, as it supports all relevant LTE bands, is designed for use on AT&T and Verizon networks, and includes the required regulatory and MNO certifications.
• LEXI-R10801D for the EMEA and APAC regions comes with necessary regulatory approvals such as RED, UKCA, NCC and RCM.

LEXI-R10 modules include an embedded Wi-Fi radio to scan Wi-Fi hotspots for indoor location and they support the u-blox CellLocate positioning service. The modules are professional grade and are qualified according to the u-blox qualification policy, based on the AEC-Q104 standard.
