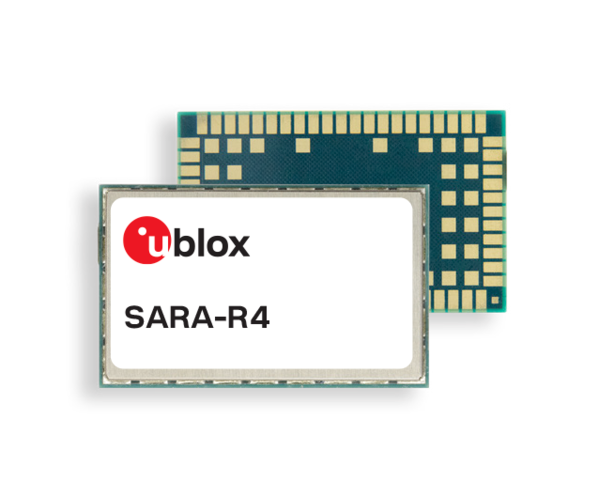

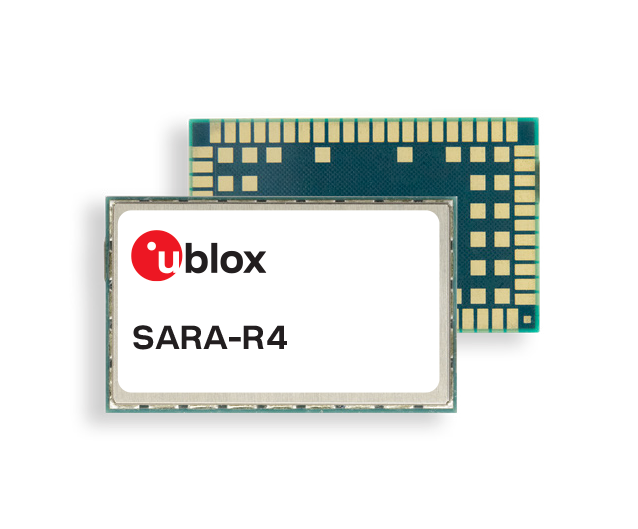

SARA-R422M8S-00B
u-blox*LTE Cat M1/NB2/2G module*GNSS*band config. secure cloud*16x26mm*LGA*250pcs/reel
Use restriction: 4G M2M
IPR coverage: Premium
Use restriction: 4G M2M
IPR coverage: Premium
Manufacturer Item No.:
SARA-R422M8S-00B
Item number:
SARA-R422M8S-00B
Choose Variant:
SARA-R422M8S-00B
from 1 pieces
38,34 € / 1 pieces
from 10 pieces
29,82 € / 1 pieces
from 50 pieces
24,40 € / 1 pieces
from 100 pieces
22,37 € / 1 pieces
Add to Favorites
Built-in foundation and end-to-end security with root of trust
- Power autonomy through positioning in the cloud; integrated u-blox M10 GNSS receiver and CloudLocate
- Software-based configurability within each hardware design
- Simultaneous LTE communication with GNSS positioning
- Guaranteed best coverage with 23 dBm output power
- Cost-effective, power efficient, end-to-end IoT communication with MQTT Anywhere and MQTT Flex
- Power autonomy through positioning in the cloud; integrated u-blox M10 GNSS receiver and CloudLocate
- Software-based configurability within each hardware design
- Simultaneous LTE communication with GNSS positioning
- Guaranteed best coverage with 23 dBm output power
- Cost-effective, power efficient, end-to-end IoT communication with MQTT Anywhere and MQTT Flex
| Form factor: | SARA |
|---|---|
| Cellular Regions: | Multi-Region |
| LTE Bands: | 1, 12, 13, 18, 19, 2, 20, 25, 26, 28, 3, 4, 5, 66, 8, 85 |
| GSM Bands: | Quad-band |
| Datarate: | M1 (588 kbit/s DL and 1119 kbit/s UL), NB2 (127 kbit/s DL and 158.5 kbit/s UL) |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| Temperature: | -40 to +85 °C |
| Dimensions: | 26 x 16 x 2.5 mm |
| Voltage: | 3.2 - 4.5 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 6 |
